Resin bonded arris cup wheel

Black Panther

This wheel is specifically designed for the machines in which arris is made without using diamond wheels. The bond offers a great lasting quality and a grinding power, meeting all requirements to achieve excellent polishing results on the industrial level.

Code BL

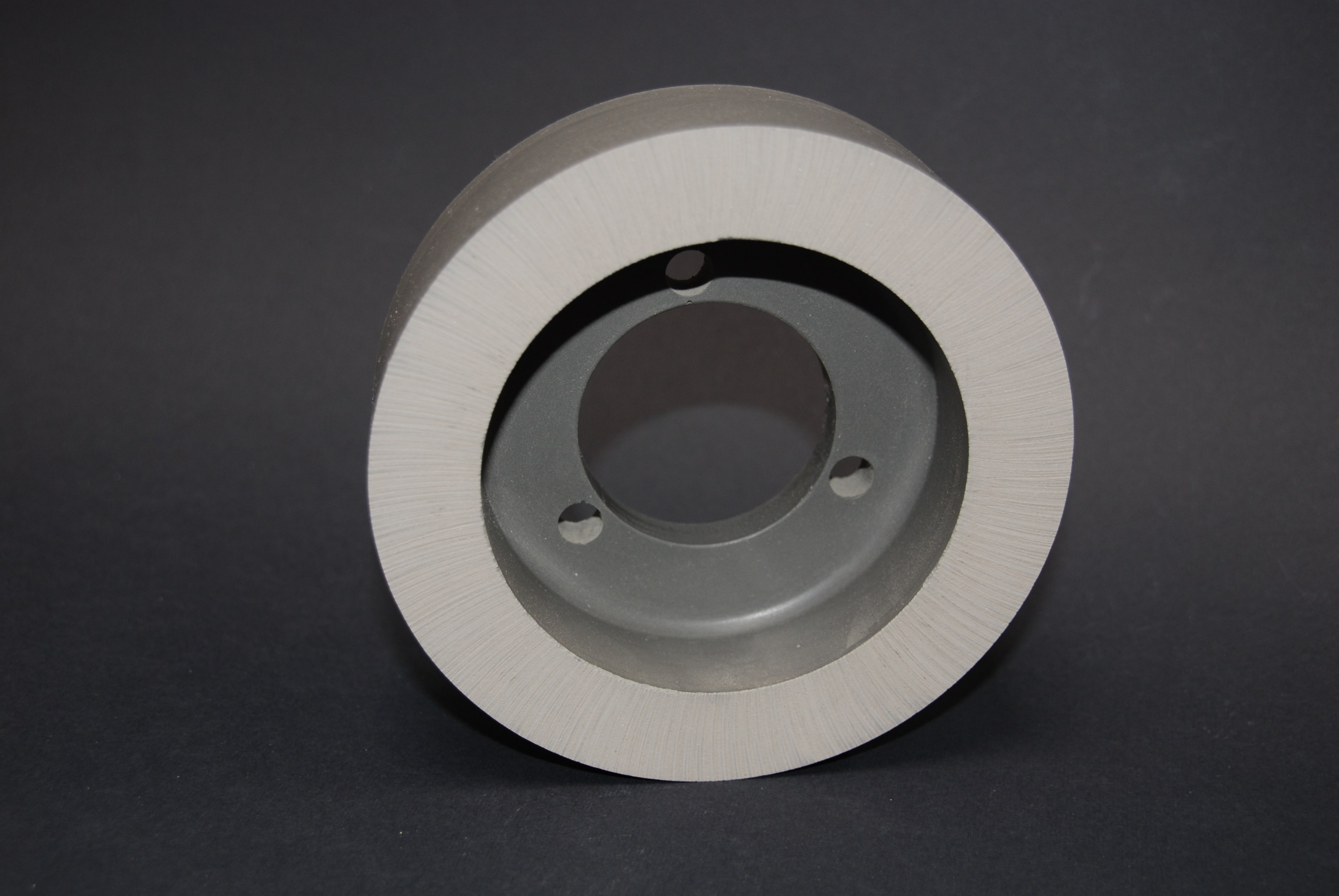

Resin bonded arris cup wheels.

This wheel is specifically designed for the machines in which arris is made without using diamond wheels. The bond offers a great lasting quality and a grinding power, meeting all requirements to achieve excellent polishing results on the industrial level.

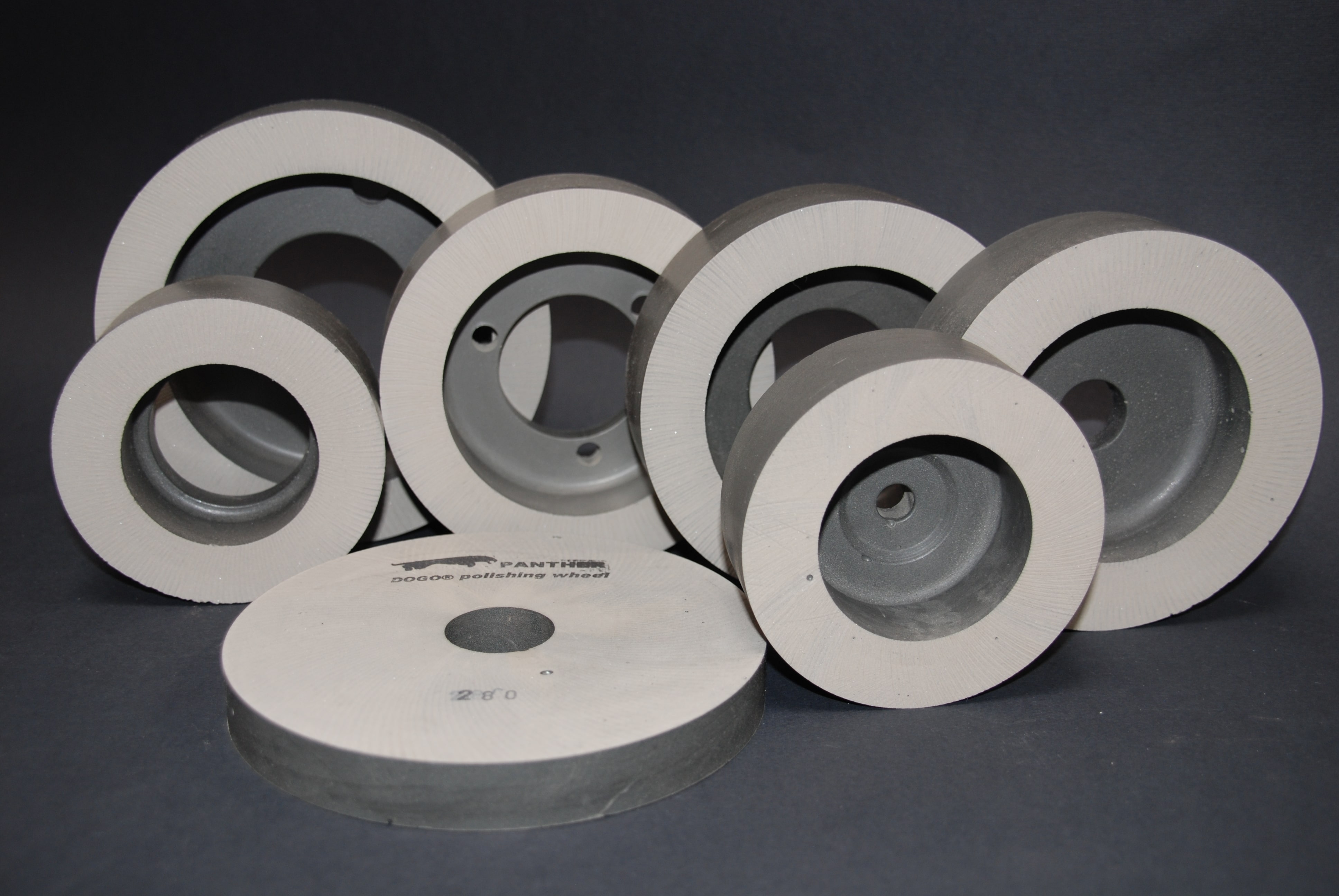

Arris wheel are produced according to the following bond and grit:

 • # 280 GR Medium fine/hard bond to be used without diamond wheels

• # 400 GR Fine/hard bond to be used after diamond wheels

• # 600 GR Extra fine/Hard bond to be used after diamond wheels

Use:


Glass, Metal

made in italy

Physical characteristics

Form
Solid
Colour
London Smoke
Smell
Practically odourless
Density
1,85 g/cm3
Point/Stagger of fusion
n.a.

Use conditions

Speed (rpm)
2.800 max
Temperature
30 - 60 °C
Pressure
0,5 - 2,8 bar
Lubrification
Cooled with running water
Resin bonded arris cup wheel
Black Panther
Download technical data sheet
